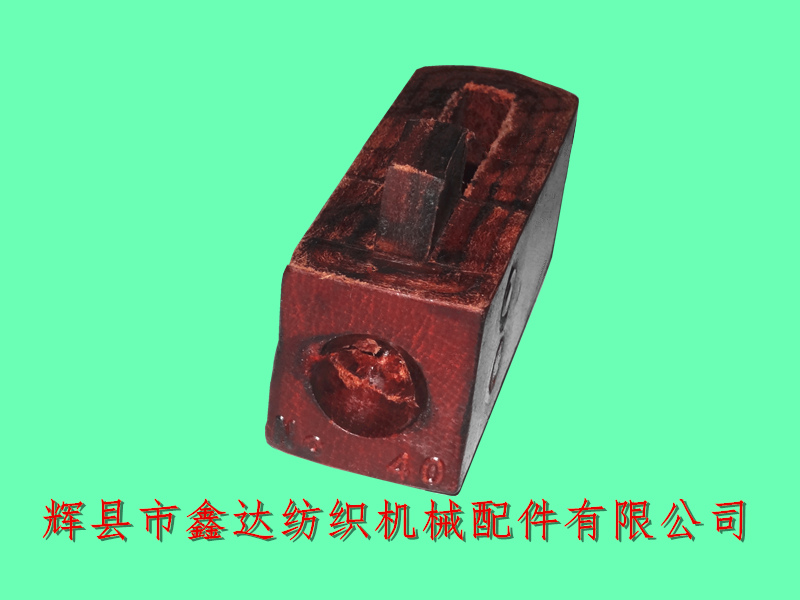

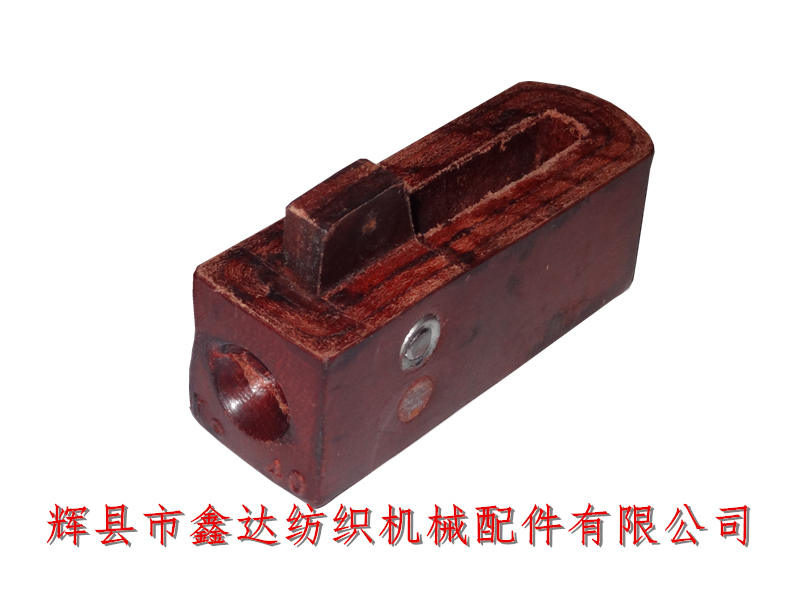

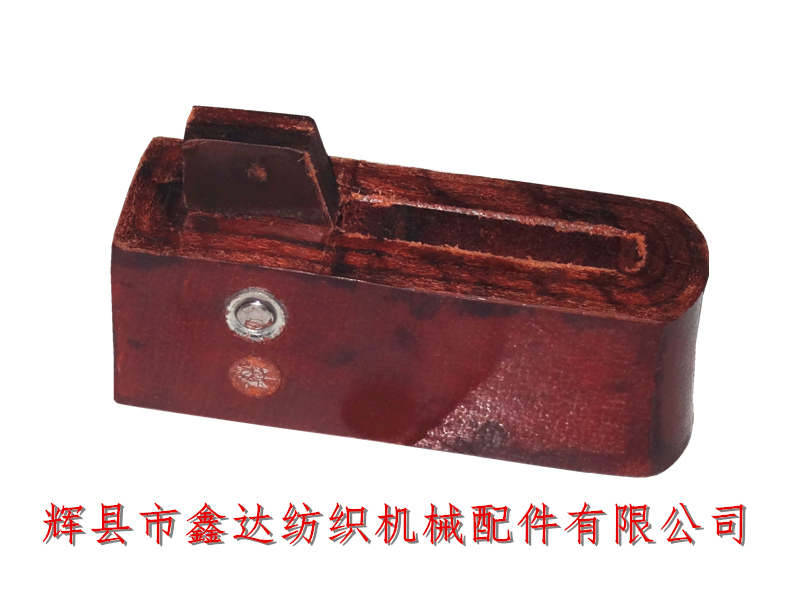

Huixian Xinda Textile Machinery Parts Co., Ltd. provides No.40 Picker/ Textile Leather Tongue/Cowhide Picking Knot. The material of No.40 leather knots (leather kernels) is cowhide or pigskin. The parameters of this textile leather piece are: total length of 113 millimeters, outer diameter of the shuttle point position of 16mm, overall width of 37mm, height of the picker body of 39mm, and the tongue of the leather kernel is 19mm above the plane of the leather knot, that is, the total height is 58mm.

The thickness of the No.40 skin knot tongue is 12mm, which means the inner width of the shuttle board groove is 12mm and the inner length of the groove is 51mm (in the middle position, the two sides of the inner cavity are in a waist arc shape). No.40 Leather Knot/Leather Tongue/Textile Machine 40 # cowhide shuttle knot R, the distance between the front and edge of the leather tongue on the upper plane is 13mm.

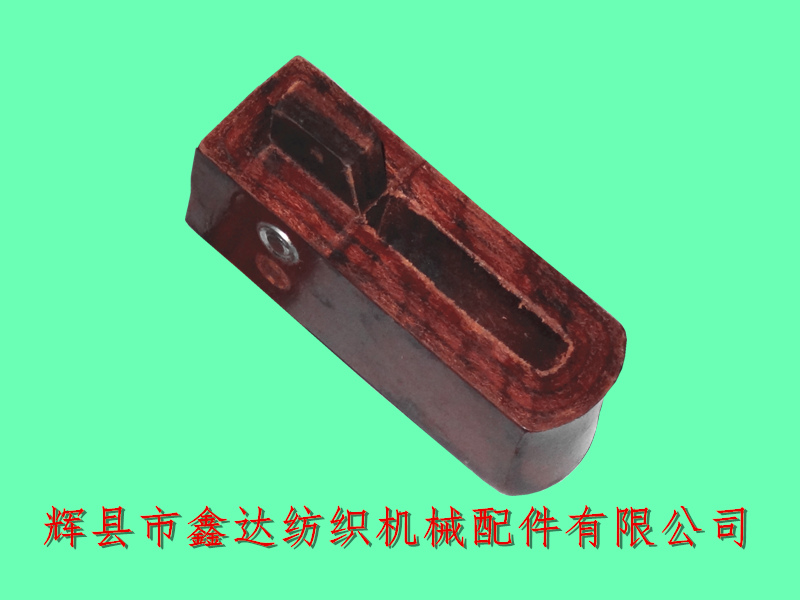

The above picture is a top view of the No. 40 leather knot (40 # leather nut), which is fixed by rivets between the main body of the leather knot and the middle inner nut (standing nut, leather tongue). The length of its upper plane is 111mm. Usually, the picker of cowhide is extruded using a mold.

Based on the characteristics of its own materials, it has good elasticity and low noise during shuttle feeding or blocking. The minimum order quantity for textile equipment accessories -40 # picker is 300 pieces. If you need to purchase loom leather knots, cowhide R leather kernels, shuttle feeding knots, cowhide R pieces, 40 # picking knots and other products, please contact our company;

We support textile production factories or trading enterprises in various cities to inquire about details through sample inquiries.
